Panzarnozzle - Full Tungsten Carbide Nozzles

Panzarnozzle - Full Tungsten Carbide Nozzles

Regular price €52,95 EUR
Regular price Sale price €52,95 EUR
Sale Sold out
VAT included. Shipping calculated at checkout.

In stock

Panzarnozzle is here!

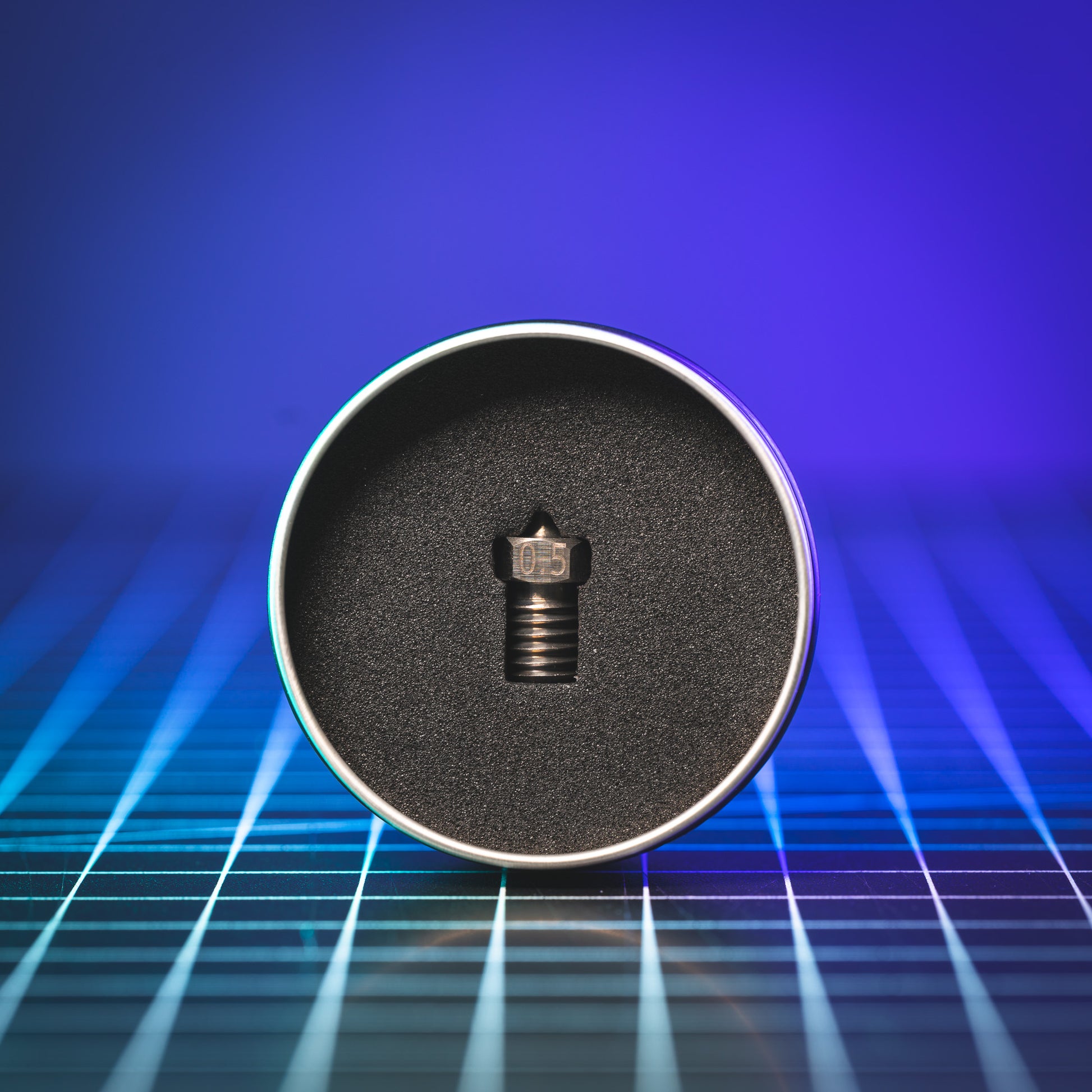

A v6 nozzle in full K20 tungsten carbide that is almost impossible to wear out. Probably the last nozzle you will ever need.

Test data for flow rate etc. will come.

NOTE! Latest batch of Panzarnozzle v2 0.4mm are washed one extra time by the factory and are not as dark as the pictures show.

What is the difference between #1 and #2?

Panzarnozzle 1 is manufactured in the traditional way where the raw tungsten powder is pressed into shape and then sintered in a furnace at 1480℃. After that, the outside is ground with a diamond grinding wheel to get a nice finish.

Panzarnozzle 1 is available in sizes 0.4, 0.5, 0.6 and 0.8mm.

Panzarnozzle 2 is manufactured using a new process more akin to injection molding to get an even smoother filament path inside the nozzle. On these only the thread has been finished so the outer finish on the nozzle is straight from the sintering and not diamond ground.

Panzarnozzle 2 is available in sizes 0.4 and 0.6mm.

Why choose a tungsten carbide nozzle?

Exceptional wear resistance
Take advantage of the unbeatable durability of tungsten carbide for trouble-free extrusion. Its hardness ensures consistent dimensions for the nozzle diameter, providing consistent results over time.

Excellent thermal conductivity
Benefit from the superior thermal conductivity which ensures efficient heat distribution during extrusion. This maintains an even plastic temperature, resulting in a constant flow pressure for outstanding print quality and stability.

Technical specifications

K20 properties

Density 14.9g/cm³
1,800 N/mm²
Thermal conductivity 110 W/mK
Thermal expansion 4.7 µm /m ℃
